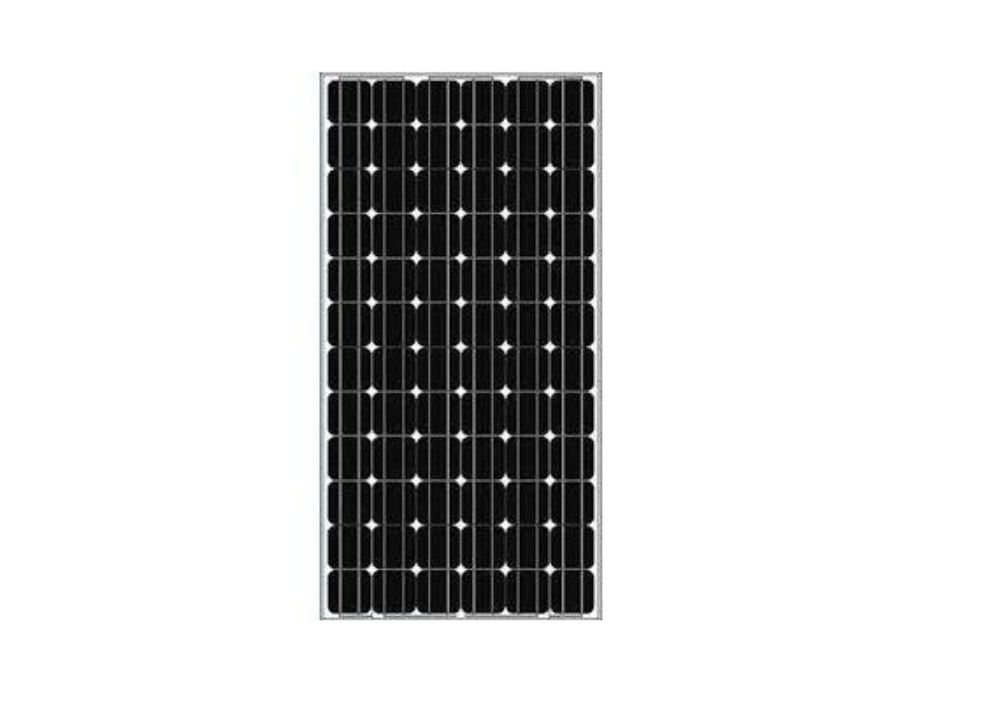

Solar modules



Typical Applications

  • Satte PV Modules are designed for efficiency and reliability, sourced from top global manufacturers with high standards. Key
    features include:
  • High-efficiency Mono/Poly crystalline cells with over 15% energy conversion, even at low light levels.
  • Tempered glass with anti-reflective coating for enhanced power output and strength.
  • Waterproof junction box for easy connections.
  • 25-year power output warranty.
  • Certified by TUV Rheinland to ISO, CE, and IEC standards.
  • These modules ensure consistent quality and are ideal for all solar applications with dependable, long-lasting performance.

Operating Conditions

  • Operating Cell Temperature: 46±2°C
  • Temp Coefficient Pmax: -0.45%/°C
  • Temp Coefficient Voc: -0.37%/°C
  • Temp Coefficient Isc: 0.06%/°C

Technical Data

Model Peak Power(Pmax) ±3% (W) Power Tolerance (W) Max.Power Voltage(Vmp) (V) Max.Power Current(lmp) (A) Open-circuit Voltage(Voc) ±3% (V) Operating Temperature (℃) Max. Series Fuse Rating (A) Max. System Voltage(DC) (V) Short Circuit Current (A)
Dimensions (mm) H
     Weight (kg)
                    L H W
125W LV 125
0~+5
 20.13 68.92 24.48
-40~+85
 15 1000 6.46 800 770
30
 6.47
125W HV 125 28.22 4.43 33.29 15 1000 4.68 800 765 7.2
280W 280 31.86 8.79 37.86 15 1000   1535(±2) *880(±2) 13.5
340W 340 38.55 8.82 45.64 15 1000 8.8 1856(±2) *880(±2) 17.6
450W LV 450 34.62 13.01 41.46 25 1000 13.47 1903(±2) 1134(±2) 23.6
450W HV 450 68.92 6.53 82.85 12 1000 7.08 1903(±2) 1134(±2) 23.6
600W 600 44.31 13.54 52.52 30 1500(IEC) 14.12 2278(±2) 1134(±2) 30 30.6(±3)

Product Video

Datasheet/Downloads Solar modulesDatasheet
