Typical Applications
- Pump clean water with sand content <150g/m³ for diverse applications.
- Extract water efficiently from wells for various agricultural needs.
- Utilize the pump for river-based water extraction and distribution purposes.
- Support farm irrigation systems, ensuring optimal water supply for crops.
- Provide reliable water supply solutions for various domestic and industrial uses.
- Facilitate efficient water extraction in mining operations for diverse applications.
- Aid in drainage systems within the breeding industry for optimal conditions.
Operating Conditions
- Mechanical seal
- Water temperature up to 35℃
- Ambient temperature permissible up to 40℃
- SSD Minimum internal diameter of well: 3"(75mm)
- Maximum immersion depth: 80m
Rewindable motor
Insulation: Class B
Protection Ip68
| Components |
Material |
| Pump body |
Stainless steel |
| Pump shaft |
Stainless steel |
| Impeller |
POM |
| Bearing |
C&U |
| Mechanical seal |
Ceramic /Graphite,
SIC/Graphite or Alloy |
| Coupling and outlet |
Brass, Stainless steel |
| Shaft coupling |
AISI304 SS |

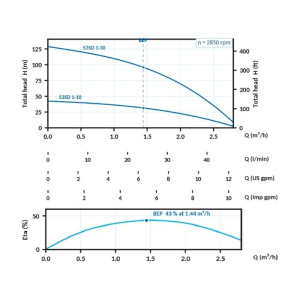

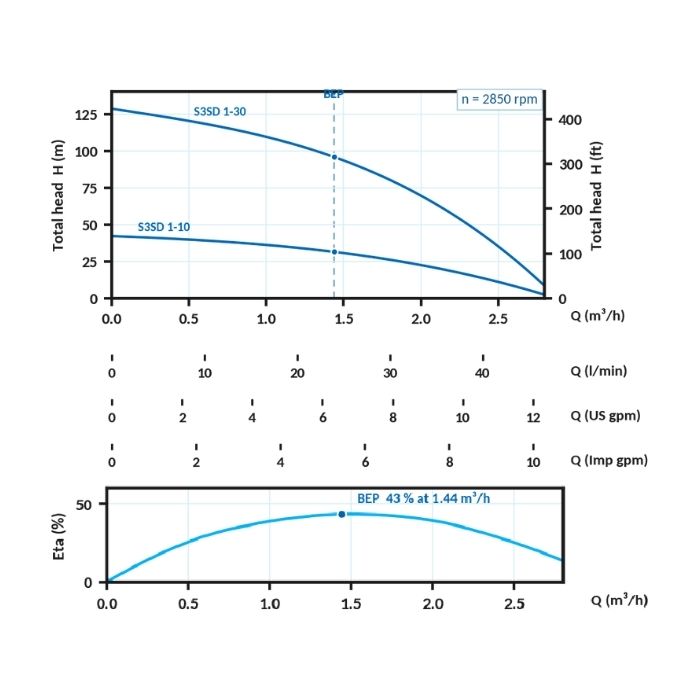

Technical Data
| Model |
Motor |
Voltage
(V) |
Current (A) |
DN(") |
Dimensions (mm) |
Weight (Kg) |
| |
KW |
HP |
P |
M |
T |
| S3SD 1-10 |
0.25 |
3.3 |
1x240 |
2.4 |
1¼ |
431 |
379 |
760 |
8 |
| S3SD 1-30 |
0.75 |
1 |
5.4 |
919 |
477 |
1346 |
12 |
