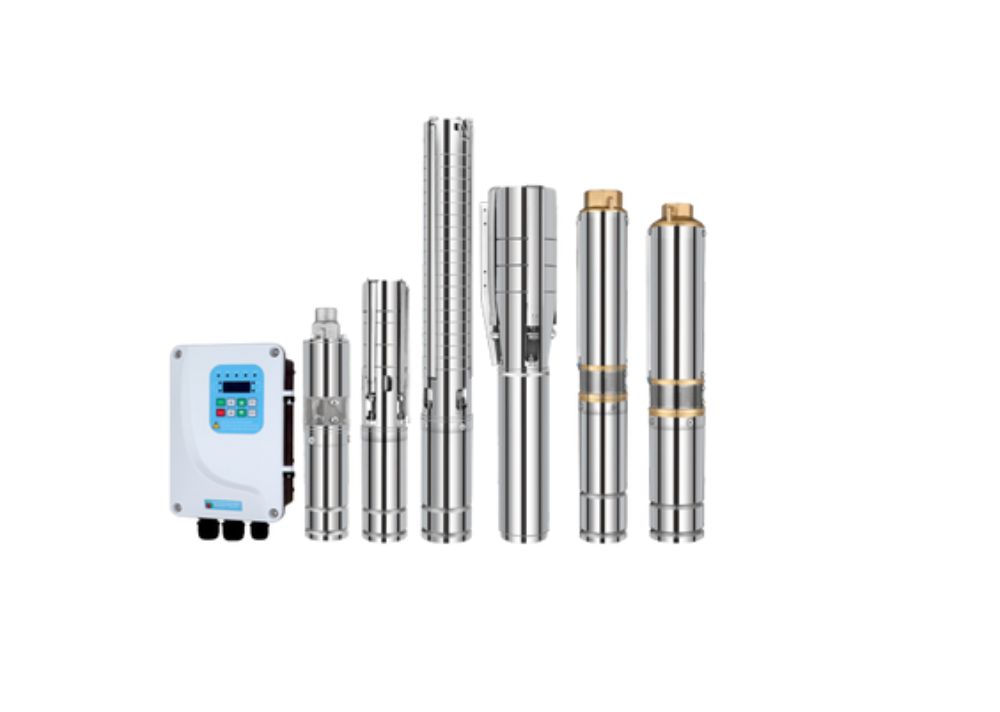

SFLO



Typical Applications

  • Wells and boreholes for water extraction.
  • Remote irrigation systems using solar energy.
  • Livestock watering in rural areas.
  • Community water supply in off-grid locations.
  • Drip irrigation systems in agriculture.
  • Solar-powered water distribution in farms.
  • Off-grid water supply for homes.
  • Water transfer in rural areas.
  • Small-scale aquaculture projects.
  • Greenhouse irrigation using solar power.

Operating Conditions

  • Helical rotor pump for high lift. Higher efficiency, lighter
    weight
  • High reliability, high-performance semiconductor devices
    applied, 98% conversion efficiency. Patented dynamic VI
    maximum power tracking (MPPT) , good stability, 99%
    MPPT efficiency.
  • Centrifugal pump for big flow. Automatic operation. Full
    protections. Ambient temperature -20 ~ +60℃.
  • Optional remote monitoring (built-in or external)

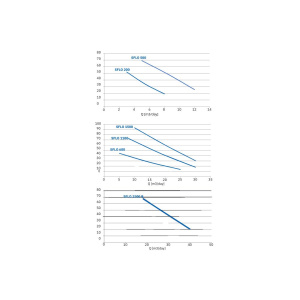

Technical Data

Mode Type Power Rated
Voltage		 PV
Configuration		 Dimensions (mm) Weight
(kg)
kW Rated Motor
Voltage (V)		 Max Input
Voltage (V)		 Recommended
MPP Voltage (V)		 A  B  C Outlet
SATTE SFLO 200  Helical Rotor 0.2 24 60 30-50 6m³/day at 30m Head 1x330W/36Vx1String 365 170 195 ¾" 6
SATTE SFLO 500 Helical Rotor 0.5 48 100 60-80 10m³/day at 40m Head 2x330W/36Vx1String 375 180 7
SATTE SFLO 600  Centrifugal 0.6 48 100 120-160 12m³/day at 30m Head 500 320 ½" 7
SATTE SFLO 1100  Centrifugal 1.1 110 200 120-160 20m³/day at 40m Head 4x330W/36Vx1String 630 200 430 8
SATTE SFLO 1500  Centrifugal 1.5 110 200 120-160 20m³/day at 60m Head 6x330W/36Vx2Strings 690 490 10
SATTE SFLO 1500B Centrifugal 1.5 110 200 120-160 50m³/day at 25m Head 3x335Wx2string 550 230 320 2"

Product Video

Datasheet/Downloads SFLO Datasheet
