Typical Application
- Small-Scale Irrigation - Self-priming design for drawing water, ideal for gardens and agricultural plots, ensuring reliable smallscale irrigation.
- Water Boosting - Centrifugal impeller boosts water, providing consistent pressure for improved residential and commercial water outlets.
- Water Transfer - Portable pump for efficient water transfer between locations, suitable for filling tanks and supplying remote areas.
- Portable Applications - Handle for easy mobility, making it perfect for portable use in temporary irrigation setups or emergency water transfers.

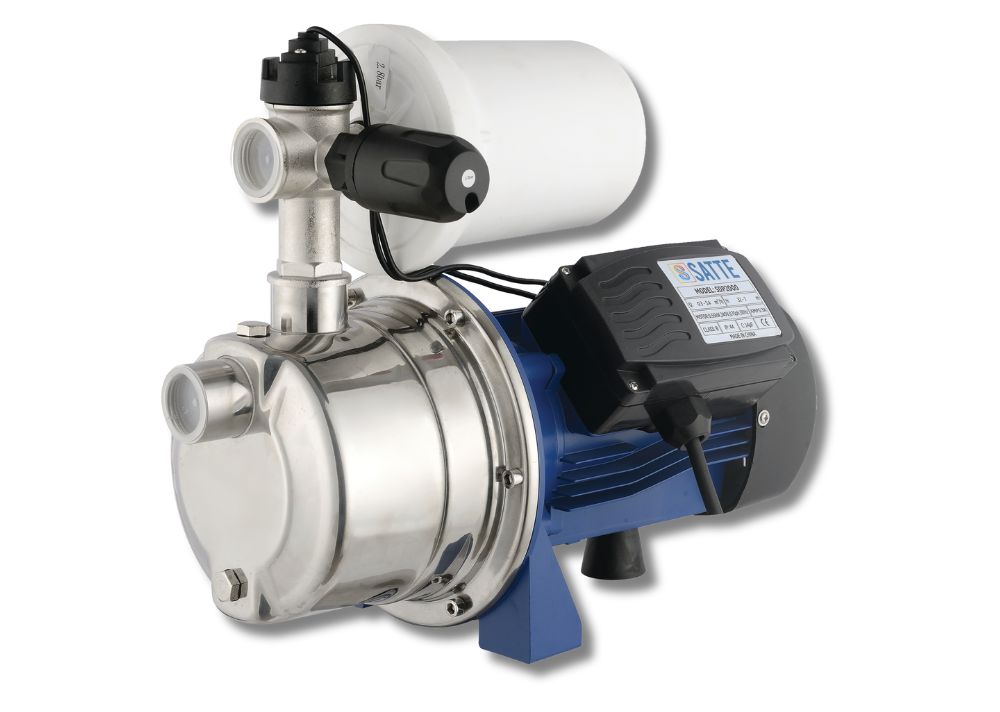

- AutoPress System - Automatic booster system with diaphragm tank, pressure switch, and gauge for maintaining consistent water pressure in various applications.
- Temperature-Sensitive Applications - Suited for pumping thin, slightly aggressive liquids, with a maximum temperature handling of +35°C for diverse liquid transfer. Operates in ambient temperatures up to +40°C, providing versatility for use
Operating Conditions
Max. Liquid Temperature: +60°C
AmbientTemperature upto : +40°C
Total suction lift up to: 8m
Component
Pump body: Nylon
Pump Support: Aluminium
Motor Housing: Aluminium
Impeller: PPO
Motor shaft: AIS1304
Mechanical Seal: SIC/Graphite
Motor
Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP44
Continous service S1
Thermal protector for single phase
Single-phase 220V/50Hz
Technical Data
| No. |
Model |
Power |
|
INLET/OUTLET (Inch) |
Current (A) |
Dimensions (mm) |
Weight (kg) |
| |
|
KW |
HP |
L |
W |
H |
| A |
SDP2000 |
0.37 |
0.5 |
1" X 1" |
4.2 |
405 |
245 |
325 |
8.5 |
| B |
SDP2000A |
0.75 |
1 |
1" X 1" |
5.3 |
440 |
265 |
360 |
12 |
