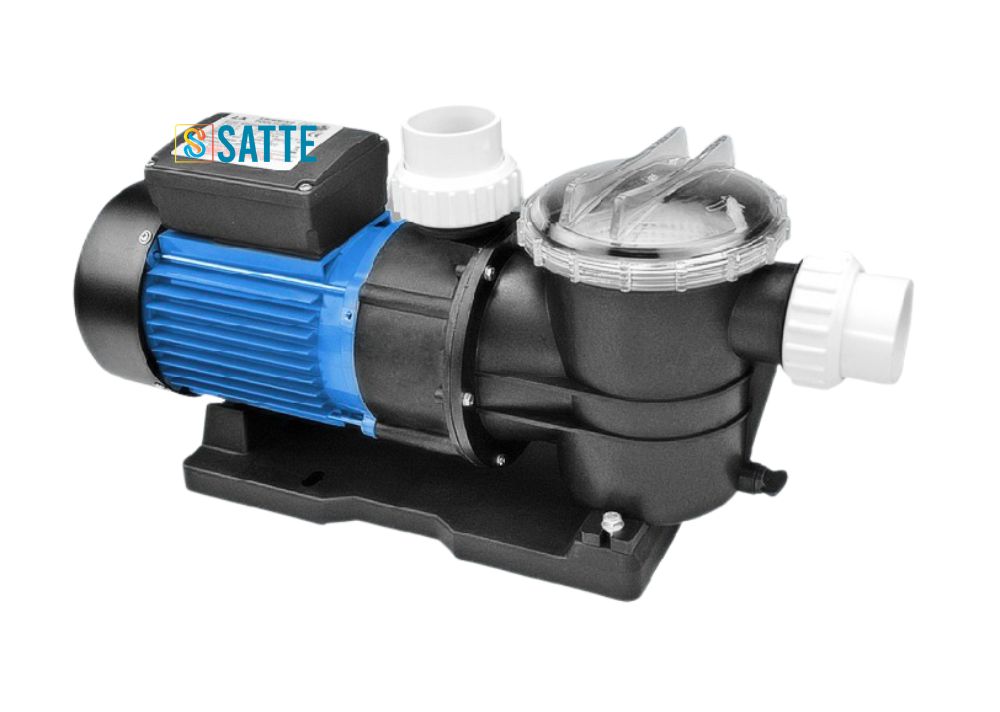

SFTP



Typical Applications

  • Residential and domestic swimming pools
  • Medium-sized private and public pools
  • Spas and wellness centers
  • Saunas and water circulation systems
  • Steel structure pools and water features

Features

  • Designed for medium head installation in domestic and medium pools
  • Anti-corrosive body and components for durability
  • High-quality imported bearings
  • Extremely quiet operation
  • External heat sink ensures stable working conditions
  • Specially designed unions compatible with both metric and imperial standards
  • Superior high and medium head performance
  • More efficient and dependable than conventional pumps
  • Anti spin-off impeller for added reliability
  • Large strainer basket for debris collection
  • Stainless steel port reinforcement for extra strength

Operating Conditions

  • Maximum water temperature: 40°C
  • Maximum ambient temperature: 50°C
  • Maximum working pressure: 2.5 bar
  • Installation: Horizontally mounted
  • Suction lift: ≤ 2m
  • Duty: Continuous (S1)

Motor

  • Asynchronous, two-pole motor
  • Protection: IP55
  • Insulation: Class F
  • Cooling: External fan-cooled (TEFC)
  • Bearing: Heavy-duty, permanently lubricated
  • Voltage: 220–240V / 50Hz (optional 60Hz models available)
  • Single-phase with built-in thermal overload protection

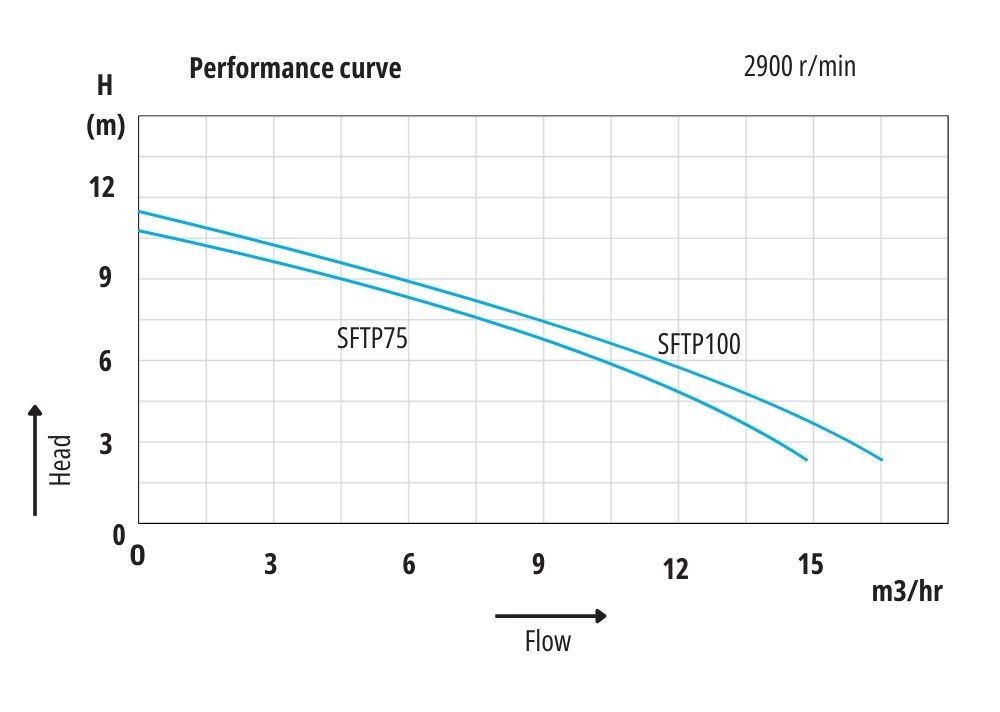

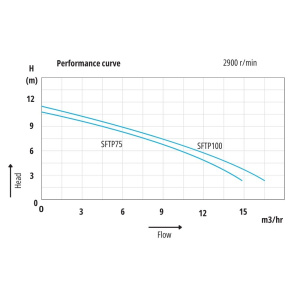

Technical Data

Model

Qmax (1/min)

Hmax (m)

Voltage (V/Hz)

Power

Current(Amps)

L x W x H(mm)

Fitting size(mm)



weight(kg)

KW

HP

SFTP75

240

10.5

220-240/50

0.55

0.75

3.2

495x195x295

48.5or50



8.8

SFTP100

275

11

220-240/50

0.75

1

3.8

495x195x296

48.5or51

9.5



Product Video

Datasheet/Downloads SFTP Datasheet
