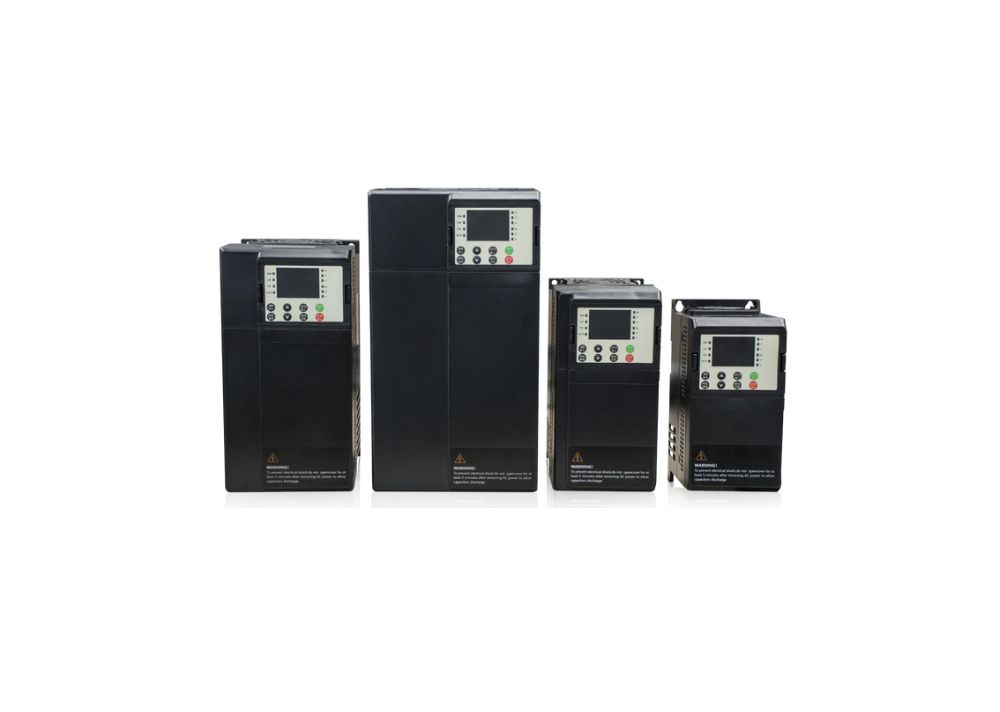

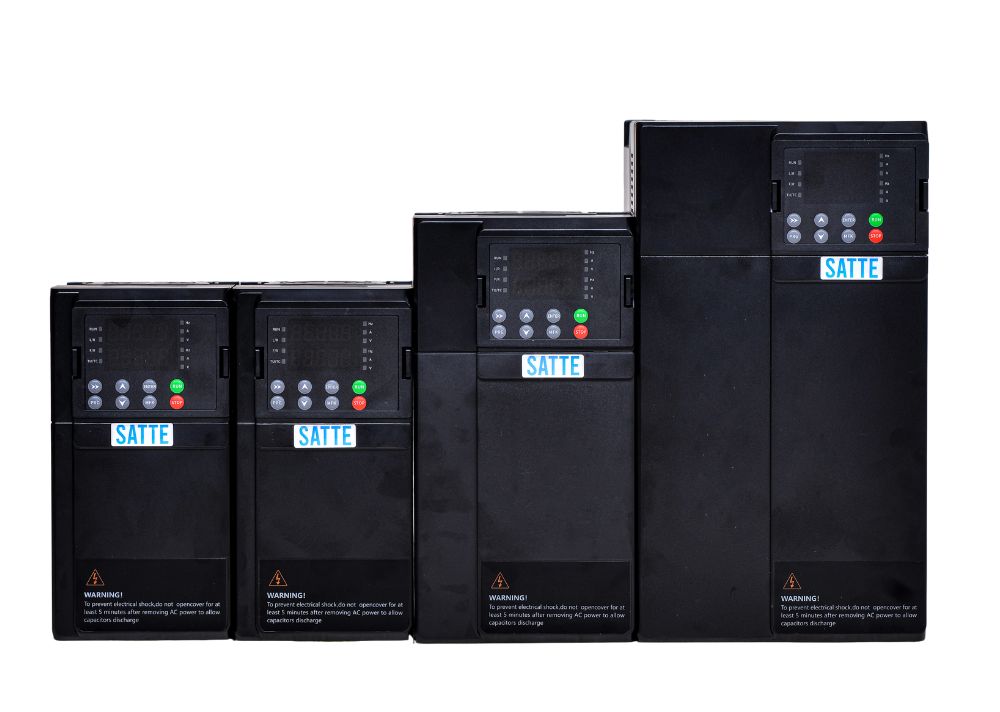

The Satte SLVKS Solar Pump Inverter is a high-efficiency, durable, and versatile solution designed for solar-powered water pumping
systems. Below are key details about the inverter, its features, and its applications.
- Hybrid Power Source: Solar-powered, supports grid/generator for reliable operation.
- High Efficiency: 99% MPPT efficiency maximizes energy use, high ROI.
- Durable Design: Multiple protections extend lifespan, reduce maintenance costs.
- Wide Applicability: Supports various pumps, control modes for diverse uses.
- Smart IoT Option: Remote monitoring, control, and data analysis capabilities.
- User-Friendly: Plug-and-play, auto start/stop for easy operation.
- Robust Specifications: 0.75–185 kW, supports single/three-phase, 0–400 Hz.
Application
- Agricultural Irrigation: Powers pumps for efficient, sustainable crop irrigation.
- Grassland Husbandry: Supplies water for livestock in remote areas.
- Urban Water Supply: Drives municipal water systems with solar energy.
- Domestic Water Supply: Provides reliable household water in off-grid areas.
Technical Data
| Mode |
Model MOTOR RATED |
OUTPUT |
MAX DC INPUT |
MPP |
|
| POWER (KW) |
RATED VOLTAGE |
CURRENT (A) |
VOLTAGE (VDC) |
VOLTAGE (VDC) |
H |
W |
L |
| SLVKS2/0.75S |
0.75 |
1 X240V |
9 |
450 |
345 |
205 |
105 |
165 |
| SLVKS2/1.5S |
1.5 |
1 X240V |
13 |
450 |
345 |
205 |
105 |
165 |
| SLVKS2/2.2S |
2.2 |
1 X240V |
18 |
450 |
345 |
240 |
125 |
170 |
| SLVKS2/3.0S |
3 |
1 X240V |
23 |
450 |
345 |
295 |
165 |
205 |
| SLVKS/4 |
4 |
1 X240V |
20 |
440 |
345 |
295 |
165 |
205 |
