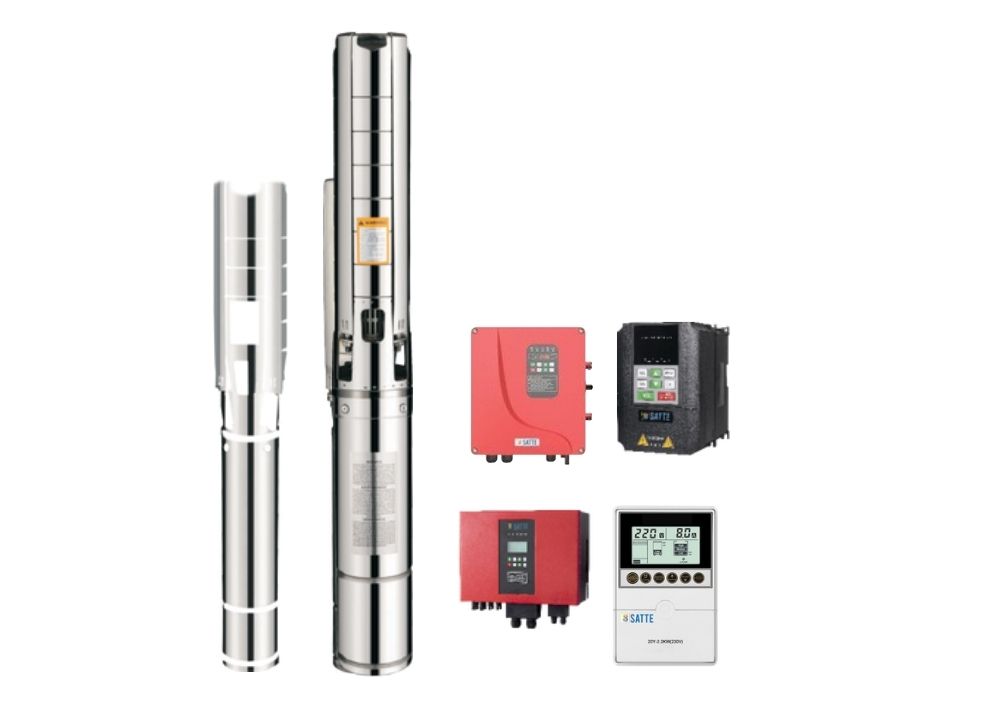

5SSP 20



Typical Applications

  • Clean water pumping
  • Well pumping
  • River pumping
  • Farm irrigation
  • Water supply systems
  • Mining operations
  • Drainage in breeding industry


Operating Conditions

  • Water temperature up to 35°C
  • Ambient temperature permissible up to 40°C
  • 5SSP Minimum internal diameter of well: 5"(130mm)
  • Maximum sand content: 0.25%
  • Maximum immersion depth: 80m

Motor

  • Rewindable motor
  • Insulation Class B
  • Protection Ip68
  • Speed RPM -2850

Technical Data

Model
Supply
 Motor P2 Current at 50 Hz (A)
Stages
Max. head (m)
Max. flow (m³/h)
Outlet
 Dimensions (mm)
Weight (kg)
kW HP Operating In Starting Ist Ø D P M T
5SSP 20-10 380-415 V 7.5 10 17.7 80 10 109 35 2", 2½" — — 770 — —
5SSP 20-12 380-415 V 9.2 12.5 21.7 98 12 130 35 2", 2½" — — 830 — —
5SSP 20-18 380-415 V 15 20 33.9 153 18 196 35 2", 2½" — — 980 — —


Product Video

Datasheet/Downloads 5SSP 20 Datasheet
