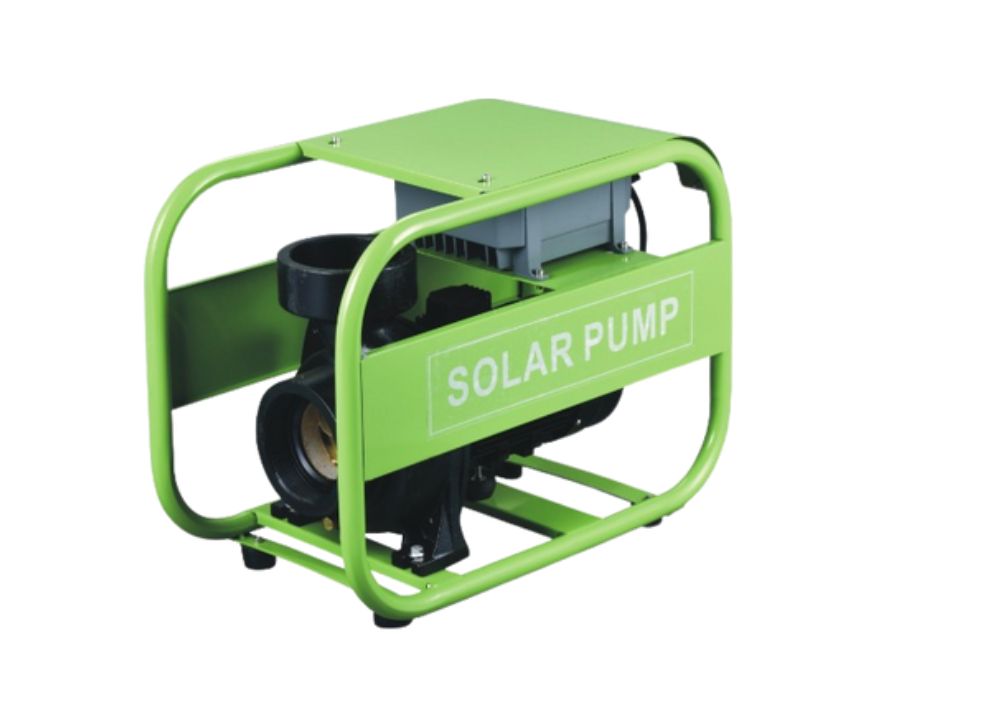

SDC
SDC
The add to cart button will appear once you select the values above
Typical Applications
Agriculture and Irrigation - Solar pumps efficiently supply water for irrigation, especially in remote farms.
Livestock Watering - They provide reliable water for livestock, ensuring healthier and hydrated animals.
Domestic Water Supply - Solar pumps ensure consistent water availability for households in off-grid areas.
Community Water Supply - They are used to provide clean water for rural and underserved communities.
Aquaculture and Fisheries - Solar pumps maintain water levels and improve oxygen flow in fish farms.
Industrial Use - Industries utilize solar pumps for cleaning, cooling, and other essential processes.
Environmental Applications - Solar pumps support reforestation and wildlife conservation by supplying water sustainably.
Water Transfer and Storage - These pumps help transfer and store water from reservoirs to storage tanks.
Solar-Powered Fountains and Landscaping - They enhance gardens and parks by powering fountains and irrigation systems.
Flood Control and Drainage - Solar pumps effectively remove water from flooded areas and manage drainage systems.
Features
Cast-iron impeller, long service life.
All-copper 180-degree high temperature cable, high reliability.
MPPT high performance, higher efficiency.
A display board to show parameters such as error codes.
Technical Data
MODEL
PUMP
MAXIMUM FLOW
(M³/H)
MAXIMUM LIFT
(M)
INLET
DIAMETER
(INCH)
Input Voltage
Calculated A
Configutarion
VOLTAGE (V)
POWER (W)
SDC50-20
DC110~200V
1500
50
20
3
110V-150V
VOLT=110 ,CURRENT=
13.6A
3X450W (LV) (330W) X 1 ARRAYS
SDC50-20 AD (
AC/DC pumps)
DC110~200V
1500
50
20
3
DC80V-430V AC
80V-240V
VOLT=200 ,CURRENT=
7.5A/3.4A
10x450W(LV)/330W /5X450W(HV)
X 1 ARRAY
SDC60-25 AD
(AC.DC Pumps)
DC80V~430V
2200
60
25
4
DC80V-430V AC
80V-240V
VOLT=280 ,CURRENT=
7.8A/5.2A
10x450W(LV)/5X450W(HV) X 1
ARRAY
Product Video
Datasheet/Downloads
SDC Datasheet
