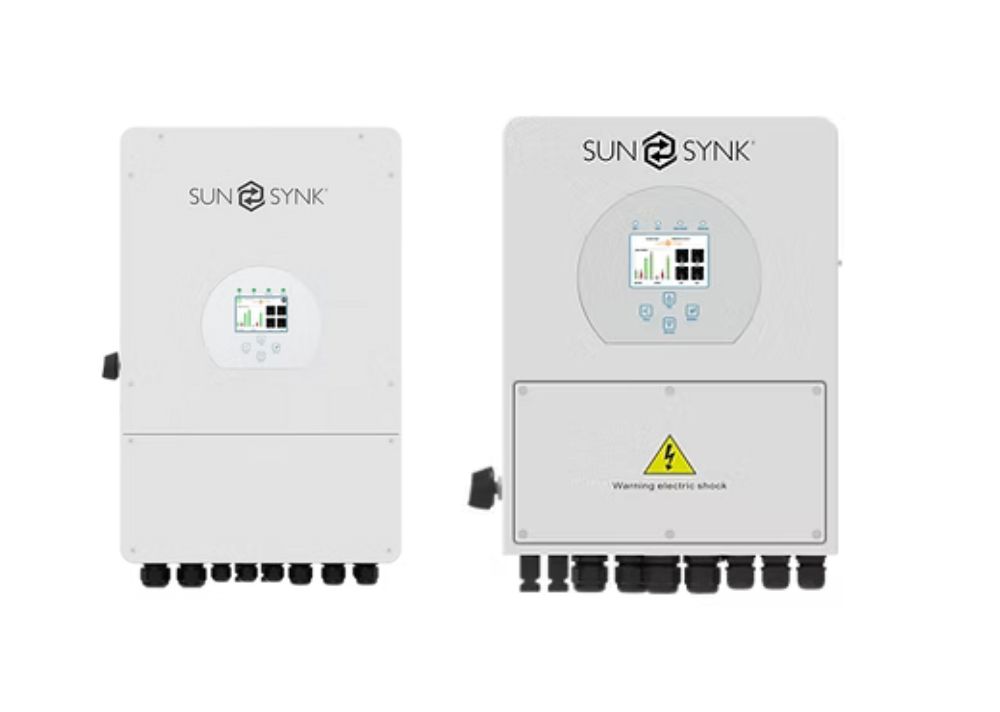

The Sunsynk Hybrid Inverter combines advanced features of a solar inverter, battery charger, and grid connection technology into one efficient system. Designed for single-phase systems, this multifunctional inverter supports both on-grid and off-grid operations, ensuring uninterrupted power supply. Its user-friendly LCD interface allows for customizable settings, including battery management, grid connectivity, and energy prioritization. With high efficiency (up to 97.6%) and robust protection mechanisms against overvoltage and short circuits, it is a reliable solution for sustainable energy management in diverse applications. Typical Applications
- Residential Power Backup: Provides uninterrupted power during outages, supporting home appliances like refrigerators, lighting, and air conditioners.
- Commercial Applications: Powers office and factory equipment while optimizing energy use between solar, battery, and grid.
- Remote Locations: Ideal for areas with limited access to electricity, pairing with solar and wind systems.
- Marine Vessels: Supports onboard power systems efficiently. Telecommunication Systems: Ensures consistent energy supply for critical communication infrastructure.
- Military Installations: Provides a secure and portable energy solution for off-grid operations. Construction Sites: Supplies reliable power for tools and temporary facilities in remote locations. Key Features
- High Efficiency: Maximum efficiency of 97.6% and MPPT efficiency greater than 99%.
- Battery Compatibility: Supports both lead-acid and lithium-ion batteries. Customizable battery voltage range (48Vd.c, 40V-60Vd.c).
- Multi-MPP Trackers: Equipped with dual MPPTs for optimal solar power harvesting.
- Flexible Power Management: Can operate in on-grid, off-grid, or hybrid modes. Programmable priority for solar, battery, or grid usage.
- Robust Protection: Features overvoltage, short-circuit, and lightning protection. IP65-rated enclosure for outdoor installations.
- Advanced Monitoring: Comprehensive LCD display with real-time system data. Compatible with Wi-Fi or GSM for remote monitoring.
- Seamless Integration: Works with generators, solar panels, and wind turbines.
Technical Data
| Specification |
Battery Type |
Battery Voltage Range |
Max. Charging/Disc harging Current |
Max. DC Input Power |
PV Input Voltage |
No. of MPPT Trackers |
Rated AC Output Power |
Max. AC Output Power |
AC Output Rated Current |
Output Voltage |
Max. Efficiency |
MPPT Efficiency |
Operating Temperature Range |
Protection Degree |
| SUNSYNK- 3.6K- SG03LP1 |
Lead- acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
90Ad.c |
4680W |
370V (125V~50 0V |
2 |
3600W |
3960W |
16.4/15.7 Aa.c |
220/230V ac (single phase) |
97.60% |
>99% |
-40~60°C (>45°C derating) |
IP65 |
| SUNSYNK- 5K-SG03LP1 |
Lead- acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
120Ad.c |
6500W |
370V (125V~50 0V) |
2 |
5000W |
5500W |
22.7/21.7 Aa.c |
220/230V ac (single phase) |
97.60% |
>99% |
-40~60°C (>45°C derating) |
IP65 |
| SUNSYNK-8K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
160Ad.c |
10400W |
370V (125V~500V |
2 |
8000W |
8800W |
35.4/33.9Aa. c |
220/230Vac (single phase) |
97.60% |
>99% |
-40~60°C (>45°C derating) |
|
| SUNSYNK-10K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
180Ad.c |
13000W |
370V (125V~500V |
2 |
10000W |
11000W |
44.4/42.5Aa. c |
220/230Vac (single phase) |
97.60% |
>99% |
-40~60°C (>45°C derating) |
|
| SUNSYNK-12K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
200Ad.c |
15600W |
370V (125V~500V |
2 |
12000W |
13200W |
53.3/50.9Aa. c |
220/230Vac (single phase) |
97.60% |
>99% |
-40~60°C (>45°C derating) |
|
| SUNSYNK-16K- SG03LP1 |
Lead-acid or Li-Ion |
48Vd.c (40V- 60Vd.c) |
240Ad.c |
20800W |
370V (125V~500V |
2 |
16000W |
17600W |
71.1/67.8Aa. c |
220/230Vac (single phase) |
97.60% |
>99% |
-40~60°C (>45°C derating) |
|
