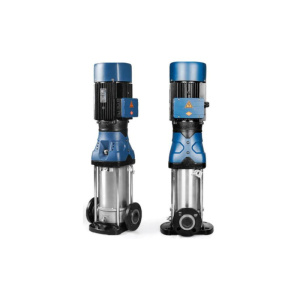

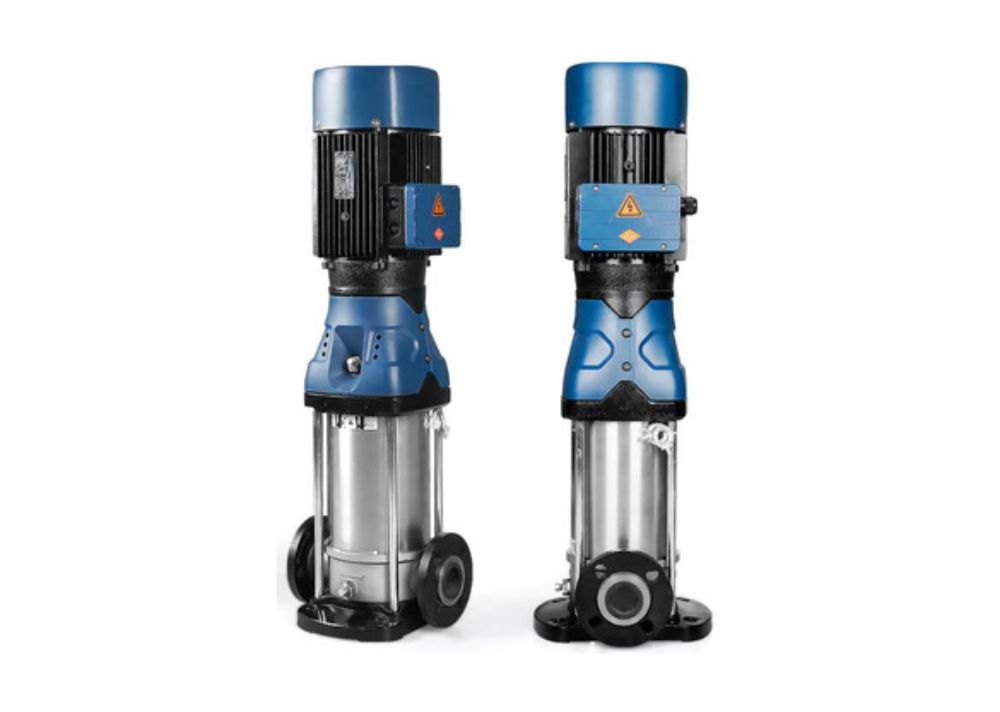

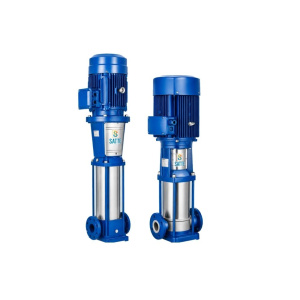

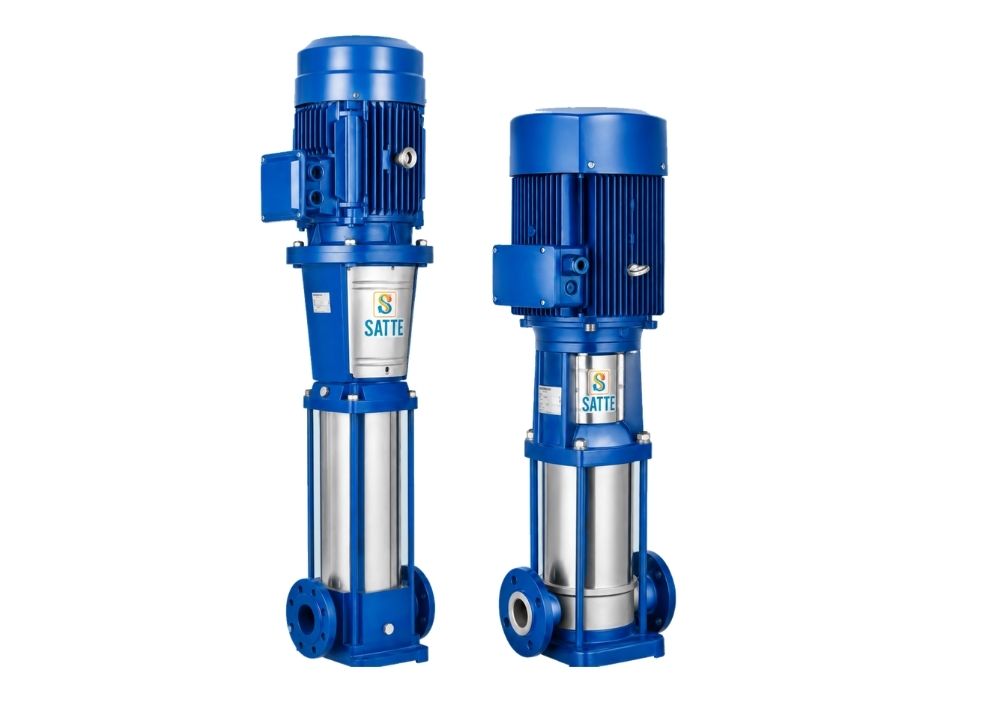

SAR150



Typical Applications

  • Versatile Usage- Suitable for a wide range of applications, from potable water pumping to industrial liquid handling.
  • Temperature and Pressure Adaptability- Can handle liquids of varying temperatures and pressure ranges.
  • Material Composition- Components like impeller, casing, etc., are made of stainless steel, ensuring durability and resistance to
    corrosion.
  • Energy Efficiency- Designed for high efficiency, leading to energy savings and environmental friendliness.
  • Compact and Aesthetic Design- Compact design with a visually appealing appearance.
  • Easy Installation and Maintenance- Simple pump structure allows for easy installation and convenient maintenance.
  • Intelligent Protector- Equipped with an intelligent protector to prevent dry-running, out-of-phase, and overload situations,
    enhancing reliability.
  • Motor Quality- Utilizes 100% copper coil for motor, ensuring longevity and reliability.

Operating Conditions

  • Suction and Discharge Sizes- 25-150 mm (1"-6") for both suction and discharge.
  • Flow Capacity Range- 0.5-240m³/h, allowing for handling different flow rates.
  • Head/Pressure Range- 4-305m, suitable for applications requiring varying pressure levels.
  • Power Range- 0.37-110kW, providing options for different power requirements.

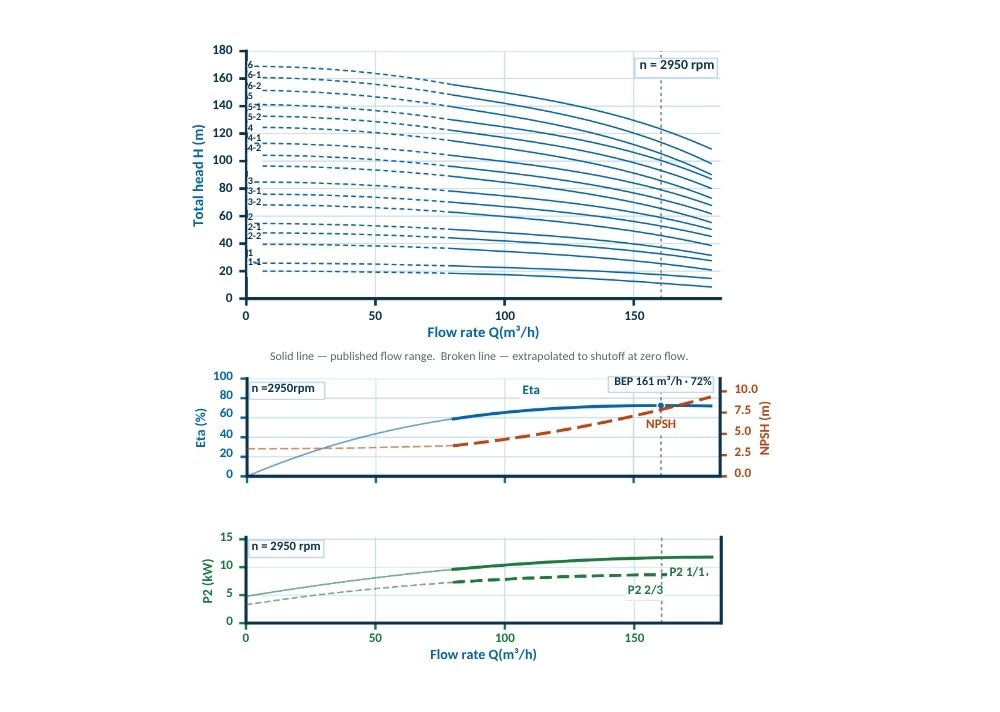

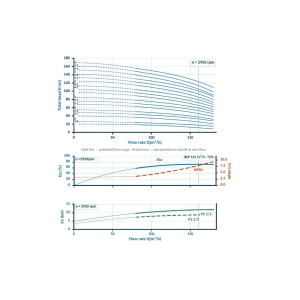

Technical Data

Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 150-1-1 11 15 3~ 380-415 V 20 142 61 89.7 150 12.5 18.3 180 2950 1.8 DN125 840 500 1340 330 255 230
SAR 150-1 15 20 3~ 380-415 V 27 190 82 90.5 150 18.5 24 180 2950 2.4 DN125 840 500 1340 330 255 235
SAR 150-2-2 18.5 25 3~ 380-415 V 33 233 100 91 150 27.5 37 180 2950 3.6 DN125 1000 550 1550 330 255 250
SAR 150-2-1 22 30 3~ 380-415 V 40 277 119 91.3 150 35 44.3 180 2950 4.3 DN125 1000 575 1575 360 285 295
SAR 150-2 30 40 3~ 380-415 V 53 374 160 92 150 40 50 180 2950 4.9 DN125 1000 650 1650 400 310 350
SAR 150-3-2 30 40 3~ 380-415 V 53 374 160 92 150 49 63.5 180 2950 6.2 DN125 1160 650 1810 400 310 360
SAR 150-3-1 37 50 3~ 380-415 V 66 460 197 92.4 150 56 70 180 2950 6.9 DN125 1160 650 1810 400 310 360
SAR 150-3 37 50 3~ 380-415 V 66 460 197 92.4 150 63 78 180 2950 7.6 DN125 1160 650 1810 400 310 385
SAR 150-4-2 45 60 3~ 380-415 V 80 557 239 92.8 150 70.5 89 180 2950 8.7 DN125 1320 685 2005 460 340 460
SAR 150-4-1 45 60 3~ 380-415 V 80 557 239 92.8 150 77 96.5 180 2950 9.5 DN125 1320 685 2005 460 340 460
SAR 150-4 55 75 3~ 380-415 V 96 671 287 93.1 150 84 104 180 2950 10.2 DN125 1350 760 2110 540 370 560
SAR 150-5-2 55 75 3~ 380-415 V 96 671 287 93.1 150 92 115.5 180 2950 11.3 DN125 1510 760 2270 540 370 570
SAR 150-5-1 75 100 3~ 380-415 V 130 909 389 93.7 150 99 122.5 180 2950 12 DN125 1510 845 2355 580 410 690
SAR 150-5 75 100 3~ 380-415 V 130 909 389 93.7 150 106.5 130 180 2950 12.7 DN125 1510 845 2355 580 410 690
SAR 150-6-2 75 100 3~ 380-415 V 130 909 389 93.7 150 112 140 180 2950 13.7 DN125 1670 845 2515 580 410 700
SAR 150-6-1 75 100 3~ 380-415 V 130 909 389 93.7 150 120.5 148.5 180 2950 14.6 DN125 1670 845 2515 580 410 700
SAR 150-6 75 100 3~ 380-415 V 130 909 389 93.7 150 130 157 180 2950 15.4 DN125 1670 845 2515 580 410 700

Product Video

Datasheet/Downloads SAR 150 Datasheet
