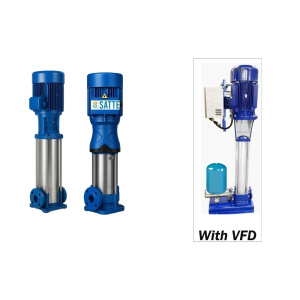

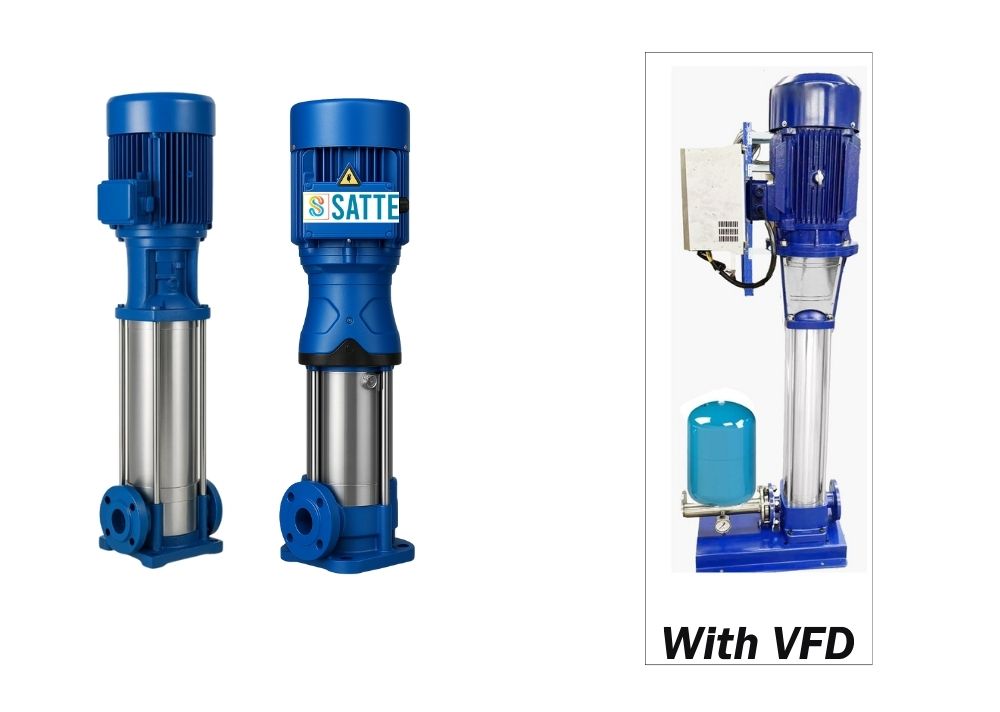

SAR 45



Typical Applications

  • Municipal water distribution-The pump can be used tosupply water in urban and rural areas through municipal water supply systems.
  • High-rise buildings - Suitable for providing pressurized water to tall structures, ensuring consistent supply across different floors.
  • Agricultural irrigation - The pump can be employedin farming and agriculture to deliver water to crops, ensuring proper hydration for optimal growth.
  • Industrial processes - Suitable for transferring liquids in various industrial applications, such as manufacturing processes or chemical plants.
  • Commercial facilities - Used in settings like hotels, resorts, and commercial buildings to transfer liquids for different purposes.

Operating Conditions

  • PumpedLiquids: Thin,clean,non-explosive liquids withoutsolid particles or fibres.
  • Liquid Temperature Range: -15°C to +120°C
  • Maximum Ambient Temperature: +50°C
  • Maximum Operating Pressure: 23 bar

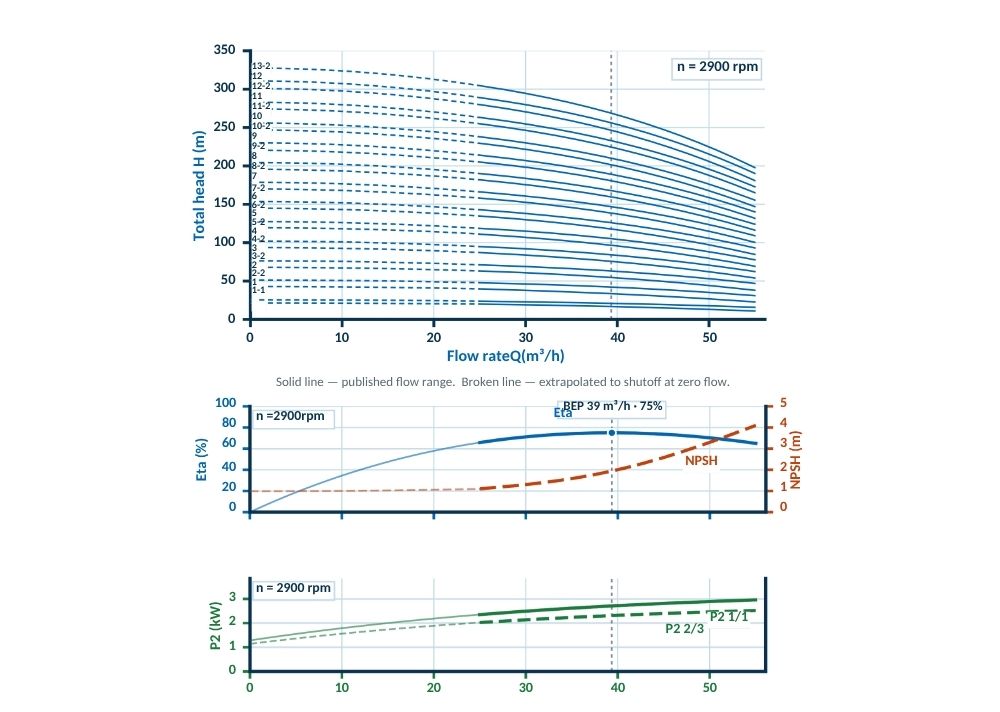

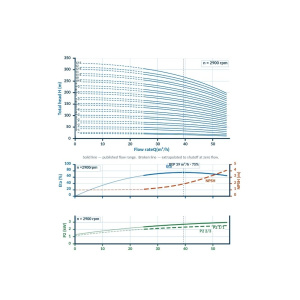

Technical Data


Model
 Motor P2
Supply / voltage range
 Current at 50 Hz (A)
Motor eff. (%)
Rated flow Q (m³/h)
Head at rated Q (m)
Max. head (m)
Max. flow (m³/h)
Speed (rpm)
Max. press. (bar)
DN
 Dimensions (mm)
Weight (kg)
kW HP Full load In Start DOL Ist Soft start Iss B1 B2 B1+B2 D1 D2
SAR 45-1-1 3 4 3~ 380-415 V 5.9 38 18 85.8 45 15 20 55 2900 2 DN80 561 345 906 197 165 83
SAR 45-1 4 5.5 3~ 380-415 V 7.7 50 23 86.8 45 19 24 55 2900 2.4 DN80 561 355 916 230 188 90
SAR 45-2-2 5.5 7.5 3~ 380-415 V 11 68 32 87.8 45 30 40 55 2900 3.9 DN80 641 390 1031 260 208 105
SAR 45-2 7.5 10 3~ 380-415 V 14 91 42 88.5 45 39 48 55 2900 4.7 DN80 641 390 1031 260 208 110
SAR 45-3-2 11 15 3~ 380-415 V 20 142 61 89.7 45 50 63 55 2900 6.2 DN80 826 500 1326 330 255 183
SAR 45-3 11 15 3~ 380-415 V 20 142 61 89.7 45 58 71 55 2900 7 DN80 826 500 1326 330 255 183
SAR 45-4-2 15 20 3~ 380-415 V 27 190 82 90.5 45 69 87 55 2900 8.5 DN80 906 500 1406 330 255 197
SAR 45-4 15 20 3~ 380-415 V 27 190 82 90.5 45 78 95 55 2900 9.3 DN80 906 500 1406 330 255 197
SAR 45-5-2 18.5 25 3~ 380-415 V 33 233 100 91 45 88 111 55 2900 10.9 DN80 986 550 1536 330 255 221
SAR 45-5 18.5 25 3~ 380-415 V 33 233 100 91 45 97 119 55 2900 11.7 DN80 986 550 1536 330 255 221
SAR 45-6-2 22 30 3~ 380-415 V 40 277 119 91.3 45 108 135 55 2900 13.2 DN80 1066 575 1641 360 285 261
SAR 45-6 22 30 3~ 380-415 V 40 277 119 91.3 45 116 143 55 2900 14 DN80 1066 575 1641 360 285 261
SAR 45-7-2 30 40 3~ 380-415 V 53 374 160 92 45 127 158 55 2900 15.5 DN80 1146 650 1796 400 310 320
SAR 45-7 30 40 3~ 380-415 V 53 374 160 92 45 135 166 55 2900 16.3 DN80 1146 650 1796 400 310 320
SAR 45-8-2 30 40 3~ 380-415 V 53 374 160 92 45 146 182 55 2900 17.8 DN80 1226 650 1876 400 310 324
SAR 45-8 30 40 3~ 380-415 V 53 374 160 92 45 154 190 55 2900 18.6 DN80 1226 650 1876 400 310 324
SAR 45-9-2 30 40 3~ 380-415 V 53 374 160 92 45 166 205 55 2900 20.1 DN80 1306 650 1956 400 310 328
SAR 45-9 37 50 3~ 380-415 V 66 460 197 92.4 45 174 214 55 2900 21 DN80 1306 650 1956 400 310 352
SAR 45-10-2 37 50 3~ 380-415 V 66 460 197 92.4 45 185 230 55 2900 22.5 DN80 1386 650 2036 400 310 355
SAR 45-10 37 50 3~ 380-415 V 66 460 197 92.4 45 193 238 55 2900 23.3 DN80 1386 650 2036 400 310 355
SAR 45-11-2 45 60 3~ 380-415 V 80 557 239 92.8 45 206 255 55 2900 25 DN80 1466 685 2151 450 345 426
SAR 45-11 45 60 3~ 380-415 V 80 557 239 92.8 45 214 263 55 2900 25.8 DN80 1466 685 2151 450 345 426
SAR 45-12-2 45 60 3~ 380-415 V 80 557 239 92.8 45 226 280 55 2900 27.5 DN80 1546 685 2231 450 345 432
SAR 45-12 45 60 3~ 380-415 V 80 557 239 92.8 45 236 289 55 2900 28.3 DN80 1546 685 2231 450 345 432
SAR 45-13-2 45 60 3~ 380-415 V 80 557 239 92.8 45 247 305 55 2900 29.9 DN80 1626 685 2311 450 345 438
