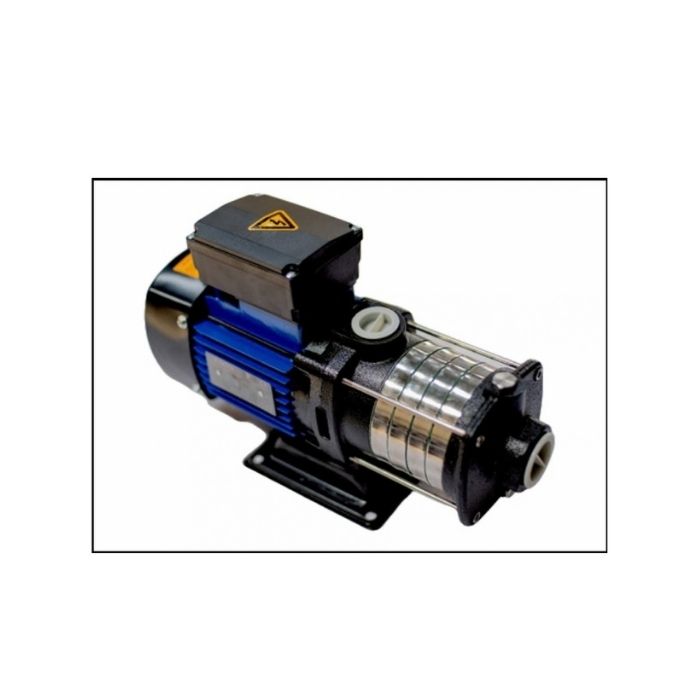

SHLP 20

Typical Applications

Air-conditioningand coolingsystems: circulation for consistent temperature control and machine cooling.
Pressure boosting in industrial processes and for domestic and commercial water distribution.
Water treatment and purification plant, and boiler feedwater at high pressure.
Industrial cleaning and high-pressure washdown duties.
Aquaculture, fertiliser metering and agricultural irrigation.
Firefighting systems requiring rapid, reliable supply.

Operating Conditions

Thin, clean,non-aggressive and non-explosive liquids without solid particles or fibres.
Liquid temperature range 0 C to +90 C; maximum ambient temperature +50 C.
Maximum inlet pressure 6 bar; maximum operating pressure 10 bar to 40 C, 6 bar to 90 C.

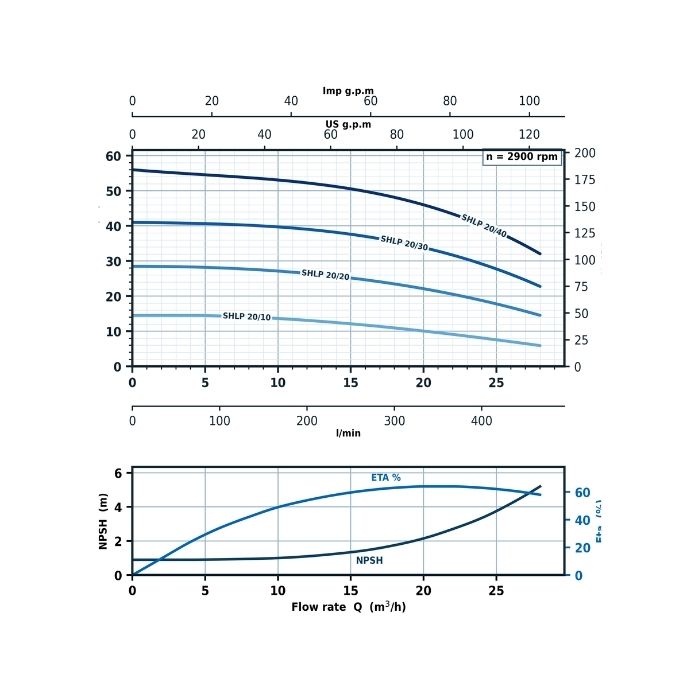

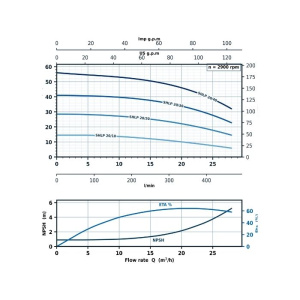

Maximum suction lift: read from the NPSH curve, plus a safety margin of 1.0 m.
Enclosure class IP54, insulation class F, 2900 rpm.
All models in this series share the 20 m3/h hydraulic; the figure after the oblique is the stage group.
Non-self-priming; fill the casing and suction line before starting.

Product Video

Datasheet/Downloads SHLP 20 Datasheet
